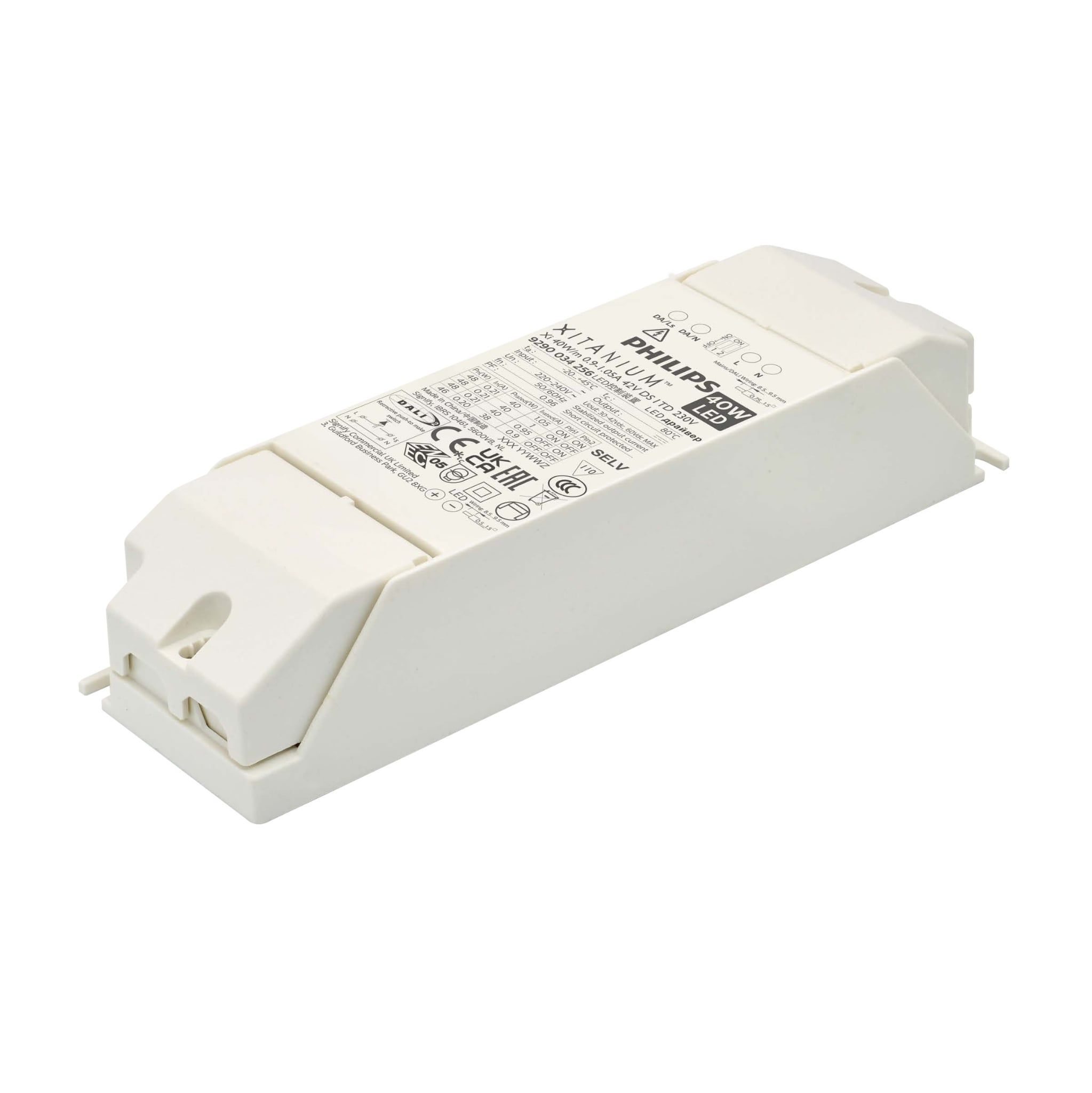

Xitanium Mini Dali DS 15W 25W 36W 40W
Mô tả
Philips Xitanium LED Point drivers are designed to operate with LED COB solutions used both in built-in and independent applications such as down light, spot light and track light. Xitanium drivers have common features such as low ripple output current, adjustable output current by dip switch and 50,000 hours lifetime. They are specifically designed to ensure great EMI performance, high robustness and safe usage.
Features
• Dali 2.0 with 1-100% dimming• Class I and II application
• Low Ripple less than 4%
• Small size with Mini Shape
• 4 output currents by Dip switch
• 50,000 hours lifetime
BẢNG THÔNG SỐ KỸ THUẬT
| Model | Công suất tối đa (W) | Kích thước (mm) | Dòng ra (mA) | Tuổi thọ (Giờ) | Dimmer |
| Xi 15W/m 0.2-0.35A 42V DS I TD 230V | 18W | 156 x 43 x 30 | 0.2 / 0.25 / 0.3 / 0.35 | 50,000 | Dali |
| Xi 25W/m 0.45-0.6A 42V DS I TD 230V | 31W | 156 x 43 x 30 | 0.45 / 0.5 / 0.55 / 0.6 | 50,000 | Dali |
| Xi 36W/m 0.7-0.85A 42V DS I TD 230V | 43W | 156 x 43 x 30 | 0.7 / 0.75 / 0.8 / 0.85 | 50,000 | Dali |
| Xi 40W/m 0.9-1.05A 42V DS I TD 230V | 48W | 156 x 43 x 30 | 0.9 / 0.95 / 1 / 1.05 | 50,000 | Dali |
